SG Iron Gauge Glass Valves

SG Iron Gauge Glass Valves Manufacturer

We are Manufacturer, Supplier, Exporter of SG Iron Gauge Glass Valves ( Gauge Glass Valves ) and our setup is situated in Ahmednagar, Maharashtra, India. We are enlisted as top company involved in offering a wide range of SG Iron Gauge Glass

With support of our excellent team workers, we have been delivering the best quality range of SG Iron Gauge Glass. This SG Iron Gauge Glass is stringently checked on series of quality parameters before being supplied to our clients. Clients can avail this SG Iron Gauge Glass from us at pocket friendly price.

Further, we follow important quality testing policies, which have enabled us to maintain premium quality standards of the products. We also strive hard towards delivering the products within the given time period at our customers end.

With the years of experience in international market and an in-depth understanding of the industry, we are capable to provide our customers with best possible solutions to meet their various requirements. Our international standards of packaging have facilitated us to create a niche for ourselves in the industry.

Apart from exporting products, we also outsource our products according to the requirements of our associates and clients. Committed to providing highest level of customer satisfaction, we are capable to deliver the orders within stipulated period of time to our client.

RUSHAS ENGINEERING become one of the most reliable source for quality products.

SG IRON GAUGE GLASS VALVE
SPECIFICATIONS
MATERIAL SG IRON IS 1865
END CONNECTIONS FLANGED
END FLANGES BS 10 TABLE-H
WORKING PRESSURE 17.5 Kg/sq.cm. & TEMP UP TO 2250C
TESTING PRESSURE 35 kg/sq.cm. HYDRAULIC
SIZE 20 mm

SR. NO. DESCRIPTION MATERIAL
1 WATER ARM BODY SG IRON IS 1865
2 STEAM ARM BODY SG IRON IS 1865
3 DRAIN ARM BODY SG IRON IS 1865
4 SEAT SS 410 / SS 304
5 SPINDLE SS 410 / SS 304
6 DIAPHRAGM SS 410 / SS 304
7 BUSH C.F.T

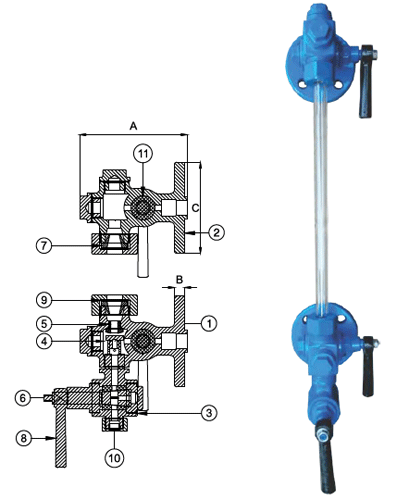

DIMENSION
SIZE-mm A-mm B-mm ØC-mm
20 135 13 115
Sg Iron Gauge Glass Valve
