Bronze Fusible Plug

Bronze Fusible Plugs Manufacturer

We are Manufacturer, Supplier, Exporter of Bronze Fusible Plugs ( Boiler Mountings ) and our setup is situated in Ahmednagar, Maharashtra, India. Fusible Plug is a boiler mounting in Steam Boilers to enhance the safety during operation. It works as safety device , wherein the fusible alloy in the plug melts on reaching the specified temperature .

With the years of experience in international market and an in-depth understanding of the industry, we are capable to provide our customers with best possible solutions to meet their various requirements. Our international standards of packaging have facilitated us to create a niche for ourselves in the industry.

Apart from exporting products, we also outsource our products according to the requirements of our associates and clients. Committed to providing highest level of customer satisfaction, we are capable to deliver the orders within stipulated period of time to our client.

RUSHAS ENGINEERING become one of the most reliable source for quality products.

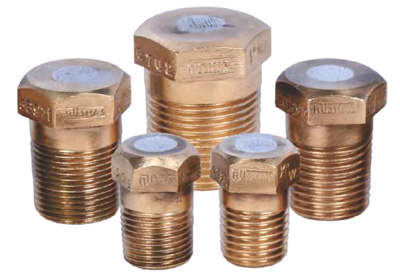

ONE PIECE - WATERSIDE / WET
Bronze Fusible Plugs Manufacturer
SPECIFICATIONS
MATERIAL BRONZE (AS PER IBR REG 282 (a) Gr. B)
END CONNECTIONS SCREWED BSPT
MANUFACTURING STANDARD AS PER IBR 1950 cl 331-334
TESTING STANDARD AS PER IBR 1950 cl 290 a
CERTIFICATION  IBR approved
SIZES 1/2 inch -1 inch
TYPES
Size (inches) Pressure (Kg/Cm 2) Melting Temperature
1 17.5 265°C
1 10.5 240°C
3/4 17.5 265°C
3/4 10.5 240°C
1/2 10.5 269°C
1/2 17.5 292°C

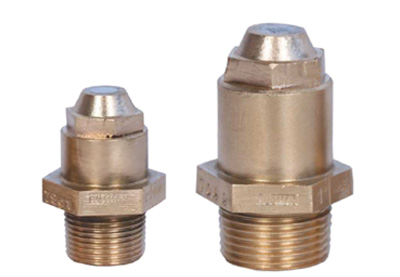

TWO PIECE WATERSIDE / WET
Bronze Fusible Plugs Manufacturer
SPECIFICATIONS
MATERIAL BRONZE (AS PER IBR REG 282 (a) Gr. B)
END CONNECTIONS SCREWED BSPT
MANUFACTURING STANDARD AS PER IBR 1950 cl 331-334
TESTING STANDARD AS PER IBR 1950 cl 290 a
CERTIFICATION  IBR approved
SIZES 3/4 inch -1 inch
TYPES
Size (inches) Pressure (Kg/Cm 2) Melting Temperature
1 17.5 265°C
1 10.5 240°C
3/4 17.5 265°C
3/4 10.5 240°C

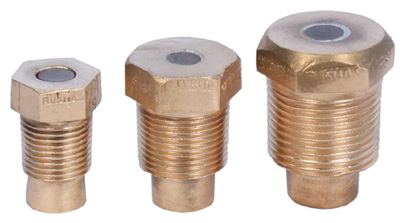

ONE PIECE FIRESIDE / DRY
Bronze Fusible Plugs Manufacturer
SPECIFICATIONS
MATERIAL BRONZE (AS PER IBR REG 282 (a) Gr. B)
END CONNECTIONS SCREWED BSPT
MANUFACTURING STANDARD AS PER IBR 1950 cl 331-334
TESTING STANDARD AS PER IBR 1950 cl 290 a
CERTIFICATION  IBR approved
SIZES 1/2 inch -1 inch
TYPES
Size (inches) Pressure (Kg/Cm 2) Melting Temperature
1 17.5 265°C
1 10.5 240°C
3/4 17.5 265°C
3/4 10.5 240°C
1/2 10.5 269°C
1/2 17.5 292°C
