Bronze Relief Safety Valves

Bronze Relief Safety Valves Manufacturer

We are Manufacturer, Supplier, Exporter of Bronze Relief Safety Valves and our setup is situated in Ahmednagar, Maharashtra, India. We widely engaged in manufacturing and supplying of finest quality Safety relief valve.The primary function of safety relief valve is to open to relieve excess pressure, re-close and prevent further flow of fluid after normal conditions have been restored. A secondary purpose is to minimize damage to other system components through operation of the Safety relief valve itself.

We also strive hard towards delivering the products within the given time period at our customers end. Owing to our ethical business policies, our customers have associated with us for a long lasting commitment.

With the years of experience in international market and an in-depth understanding of the industry, we are capable to provide our customers with best possible solutions to meet their various requirements. Our international standards of packaging have facilitated us to create a niche for ourselves in the industry.

Apart from exporting products, we also outsource our products according to the requirements of our associates and clients. Committed to providing highest level of customer satisfaction, we are capable to deliver the orders within stipulated period of time to our client.

RUSHAS ENGINEERING become one of the most reliable source for quality products.

Bronze Relief Safety Valves
Bronze Relief Safety Valves
SPECIFICATIONS
 MATERIAL  BRONZE
 END CONNECTIONS  SCREWED
 MAX BLOW OFF PRESSURE  250 PSI (17.3 BAR Gauge)
 MIN BLOW OFF PRESSURE  5 PSI (0.34 BAR Gauge)
 SIZE RANGE  1/2 INCH
G.M. CONFIRMING TO IS 318 Gr. 2 & BRASS CONFIRMING TO IS 319

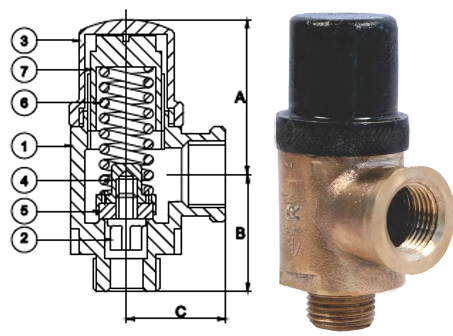

SR. NO.  PART NAME MATERIAL
1  BODY G.M.
2  STEAM G.M.
3  CAP G.M.
4  DIAPHRAGM G.M.
5  TEFLON WASHER PTFE
6  SPRING SPRING STEEL
7  TENSION ADD. G.M.

INSTALLATION ADVICE :
Outlet from the safety valve should be arranged to discharge at a safe place where it is visible it should not cause damages or injury to persons.

DIMENSION
SIZE A B C
1/2" 49 37 31.5
