Cast Iron Steam Valves
Cast Iron Steam Valves Manufacturer
We are Manufacturer, Supplier, Exporter of Cast Iron Steam Valves ( CI Steam Valves ) and our setup is situated in Ahmednagar, Maharashtra, India. We manufacture Cast iron steam valves in the compliance with industry laid specifications, using fine quality raw materials.The main function of steam valves is to control the flow and pressure level of steam and heated water vapor.
With the years of experience in international market and an in-depth understanding of the industry, we are capable to provide our customers with best possible solutions to meet their various requirements. Our international standards of packaging have facilitated us to create a niche for ourselves in the industry.
Apart from exporting products, we also outsource our products according to the requirements of our associates and clients. Committed to providing highest level of customer satisfaction, we are capable to deliver the orders within stipulated period of time to our client.
RUSHAS ENGINEERING become one of the most reliable source for quality products.
| DESCRIPTION | MATERIAL |
| BODY | CI IS 210 FG 150 |
| BONNET | CI IS 210 FG 150 |
| SPINDLE | SS. 410 |
| GLAND | CI IS 210 FG 150 |
| BUSH | G.M. IS 318 Gr.2 |
| SEAT | S.S.304 |
| DIAPHRAGM | S.S.304 |
| DIAPHRAGM NUT | BRASS IS 319 |
| HAND WHELL | CAST IRON |
| TECHNICAL SPECIFICATIONS | |
| TYPE | STOP VALVE, CHECK VALVE |
| MATERIAL | CAST IRON |
| END CONNECTIONS | FLANGED |
| END FLANGES | BS 10 TABLE-H |
| WORKING PRESSURE | 13 Kg/sq.cm. & TEMP UP TO 220°C |
| ESTING PRESSURE | 26 kg/sq.cm. HYDRAULIC |
| MANUFACTURING STANDARDS | AS PER BS 1873 |
| ESTING STANDARDS | BS 6755 PART - l |
| SIZE RANGE | 15 - 150 mm |

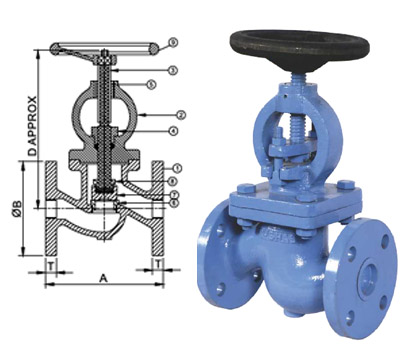

CAST IRON STOP VALVE
 |
BILL OF MATERIAL | ||
| SR. NO. | PART | MATERIAL | |
| 1 | BODY | CI IS 210 FG 150 | |
| 2 | BONNET | CI IS 210 FG 150 | |
| 3 | SPINDLE | S.S. 410 | |
| 4 | GLAND | CI IS 210 FG 150 | |
| 5 | BUSH | G.M. IS 318 Gr.2 | |
| 6 | SEAT | S.S.304 | |
| 7 | DIAPHRAGM | S.S.304 | |
| 8 | DIAPHRAGM NUT | BRASS IS 319 | |
| 9 | HAND WHELL | CAST IRON | |
| DIMENSION | ||||
| SIZE | A | ØB | T | D |
| mm | mm | mm | mm | mm |
| 15 | 130 | 114.3 | 12.7 | 185 |
| 20 | 140 | 114.3 | 12.7 | 205 |
| 25 | 152 | 120.65 | 14.3 | 218 |
| 40 | 203 | 139.7 | 17.5 | 258.25 |
| 50 | 254 | 165.1 | 19.05 | 278 |
| 80 | 310 | 203.2 | 22.2 | 344.5 |
| 100 | 360 | 228.6 | 25.4 | 436 |
| 150 | 480 | 305 | 25.4 | 511 |

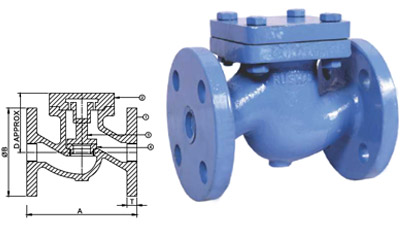

CAST IRON CHECK VALVE (NRV)
 |
BILL OF MATERIAL | ||
| SR. NO. | PART | MATERIAL | |
| 1 | BODY | CI IS 210 FG 150 | |
| 2 | COVER | CI IS 210 FG 150 | |
| 3 | DIAPHRAGM | S.S.304 | |
| 4 | SET | S.S.304 | |
| SIZE | A | ØB | T | D |
| mm | mm | mm | mm | mm |
| 15 | 130 | 114.3 | 12.7 | 63 |
| 20 | 140 | 114.3 | 12.7 | 73 |
| 25 | 152 | 120.65 | 14.3 | 75 |
| 40 | 203 | 139.7 | 17.5 | 91 |
| 50 | 254 | 165.1 | 19.05 | 119 |
| 80 | 310 | 203.2 | 22.2 | 152 |
| 100 | 360 | 228.6 | 25.4 | 176.5 |
| 150 | 480 | 305 | 25.4 | 195.8 |
