Bronze Steam Valves
Bronze Steam Valves Manufacturer
We are Manufacturer, Supplier, Exporter of Bronze Steam Valves and our setup is situated in Ahmednagar, Maharashtra, India. We manufacture Bronze Steam Valves of longer durability from high quality bronze. These steam valves are used to stop the flow of steam or heated water. We manufacture steam valves to different sizes and as per IBR specifications.
With the years of experience in international market and an in-depth understanding of the industry, we are capable to provide our customers with best possible solutions to meet their various requirements. Our international standards of packaging have facilitated us to create a niche for ourselves in the industry.
Apart from exporting products, we also outsource our products according to the requirements of our associates and clients. Committed to providing highest level of customer satisfaction, we are capable to deliver the orders within stipulated period of time to our client.
RUSHAS ENGINEERING become one of the most reliable source for quality products.
| STOP VALVE, CHECK VALVE | |
| MATERIAL | BRONZE |
| END CONNECTIONS | FLANGED, SCREWED |
| END FLANGES | BS 10 TABLE-H |
| FACE TO FACE | ANSI B-16.10 |
| WORKING PRESSURE | 17.5 Kg/sq.cm. & UP TO 224°C OR COLD NON SHOCK FLUIDS UP TO 21 kg/sq.cm. |
| TESTING PRESSURE | 35 kg/sq.cm. HYDRAULIC |
| TESTING STANDARDS | BS 6755 PART-l |
| SIZE RANGE | SCREWED 15-50 MM, FLANGED-15-80 MM |
| SR. NO. | DESCRIPTION | MATERIAL |
| 1 | BODY | BRONZE CONFIRMING TO IS 318 Gr2 |
| 2 | CAP | BRONZE CONFIRMING TO IS 318 Gr2 |
| 3 | SPINDLE | NON MAGNETIC STAINLESS STEEL |
| 4 | SEAT | NON MAGNETIC STAINLESS STEEL |
| 5 | GLAND | BRASS BAR CONFIRMING TO IS 319 |
| 6 | DIAPHRAGM | NON MAGNETIC STAILESS STEEL |
| 7 | DIAPHRAGM NUT | BRASS BAR CONFIRMING TO IS 319 |
SCREWED END VALVES
| Steam Stop Valve | ||||
| DIMENSIONS ARE IN - MM | ||||
 |
SIZE | A | B | ØC |
| 15 | 82 | 130 | 80 | |
| 20 | 96 | 160 | 90 | |
| 25 | 105 | 180 | 91 | |
| 40 | 124 | 225 | 115 | |
| 50 | 145 | 240 | 135 | |

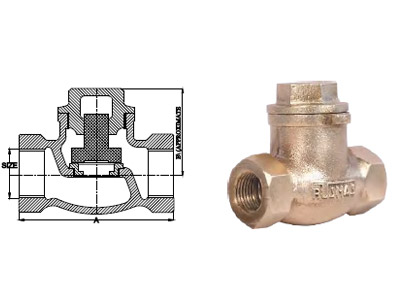

| Steam Non-Return Valve | |||
| DIMENSIONS ARE IN - MM | |||
 |
SIZE | A | B |
| 15 | 82 | 54 | |
| 20 | 96 | 61 | |
| 25 | 105 | 68 | |
| 40 | 124 | 86 | |
| 50 | 145 | 92 | |
FLANGED END VALVES

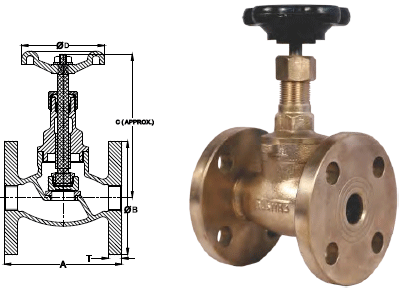

| Steam Stop Valve | ||||||
| DIMENSIONS ARE IN - MM | ||||||
 |
SIZE | A | ØB | C | ØD | T |
| 15 | 92 | 114.3 | 130 | 80 | 12.7 | |
| 20 | 105 | 114.3 | 155 | 90 | 12.7 | |
| 25 | 117 | 121 | 178 | 90 | 14.3 | |
| 40 | 140 | 140 | 225 | 115 | 17.5 | |
| 50 | 165 | 165 | 240 | 135 | 19.1 | |
| 80 | 310 | 203 | 363 | 195 | 22.2 | |

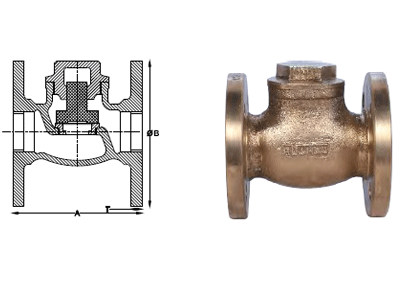

| Steam Non-Return Valve | ||||
| DIMENSIONS ARE IN - MM | ||||
 |
SIZE | A | ØB | T |
| 15 | 92 | 114.3 | 12.7 | |
| 20 | 105 | 114.3 | 12.7 | |
| 25 | 117 | 121 | 14.3 | |
| 40 | 140 | 140 | 17.5 | |
| 50 | 165 | 165 | 19.1 | |
| 80 | 310 | 203 | 22.2 | |
