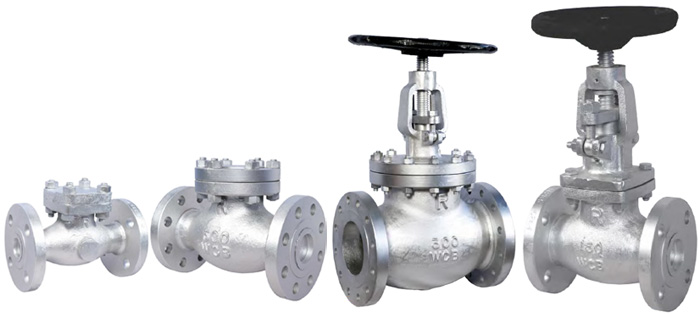

CAST STEEL GLOBE VALVES
| SPECIFICATIONS | ||
 |
TYPE | STOP VALVE, CHECK VALVE |
| MATERIAL | CAST STEEL | |
| END CONNECTIONS | FLANGED | |
| END FLANGES | ANSI B - 16.5 | |
| FACE TO FACE | ANSI B - 16.10 | |
| WORKING PRESSURE | CLASS 150 - 22 Kg/sq.cm, CLASS 300 - 58 Kg/sq.cm | |
| TESTING PRESSURE | CLASS 150 - 31 Kg/sq.cm. HYDRAULIC | |
| TESTING PRESSURE | CLASS 300 - 78 Kg/sq.cm. HYDRAULIC | |
| MANUFACTURING STANDARDS | AS PER BS 1873 | |
| TESTING STANDARDS | BS 6755 PART - I | |
| SIZE RANGE | 1 - 6 INCH | |
| CAST STEEL GLOBE CHECK VALVES (NRV) | |
| PART | MATERIAL |
| BODY | ASTM A 216 Gr WCB |
| BONNET | ASTM A 216 Gr WCB |
| DIAPHRAGM | S.S. 410 |
| SEAT | S.S. 410 |
| GASKET | SPW SS 304 WITH CAF |
| STUD AND NUT | A 193 Gr. B7 / A 194 Gr. 2H |

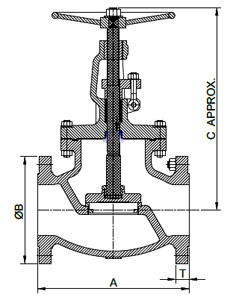

| DIMENSIONS | ||||
| CLASS 150 | ||||
| SIZE (mm) | A (mm) | ØB (mm) | T (mm) | C (mm) |
| 1" | 127 | 108 | 14.2 | 75 |
| 1 1/2" | 165 | 127 | 17.5 | 89 |
| 2" | 203 | 152 | 19.1 | 102 |
| 3" | 241 | 190 | 23.9 | 152 |
| 4" | 292 | 229 | 23.9 | 166 |
| 6" | 406 | 279 | 25.4 | 198 |
| DIMENSIONS | ||||
| CLASS 300 | ||||
| SIZE (mm) | A (mm) | ØB (mm) | T (mm) | C (mm) |
| 1" | 203 | 124 | 17.5 | 75 |
| 1 1/2" | 228.5 | 156 | 20.6 | 97 |
| 2" | 267 | 165 | 22.3 | 120 |
| 3" | 318 | 210 | 28.4 | 157 |
| 4" | 356 | 254 | 31.7 | 170 |
| 6" | 444 | 318 | 36.5 | 195 |
CAST STEEL GLOBE STOP VALVES
| DESCRIPTION | MATERIAL | QUANTITY |
| BODY | ASTM A 216 Gr. WCB | |
| BONNET | ASTM A 216 Gr. WCB | |
| SPINDLE | SS 410 | |
| SEAT | SS 410 | |
| DIAPHRAGM | SS 410 + STELLITED | |
| HAND WHEEL | C.I./CARBON STEEL | |
| EYE BOLT & NUT | A 193 Gr. B7 | |
| CROSS BOLT & NUT | A 194 Gr. 2H | |
| STUD & NUT | A 193 Gr. B7 / A 194 Gr. 2H | |
| GLAND PACKING | GRAPH. ASBESTOS WITH SACRIFICIAL INHIBITOR & INCONEL WIRE REINFORCEMENT |
| DIMENSIONS | ||||
| CLASS 150 | ||||
| SIZE (mm) | A (mm) | ØB (mm) | T (mm) | C (mm) |
| 1" | 127 | 108 | 14.2 | 227 |
| 1 (1/2)" | 165 | 127 | 17.5 | 256 |
| 2" | 203 | 152 | 19.1 | 280 |
| 3" | 241 | 190 | 23.9 | 360 |
| 4" | 292 | 229 | 23.9 | 430 |
| 6" | 406 | 279 | 25.4 | 497 |
| CLASS - 150 | CLASS - 300 | ||
| TEST PRESSURE Kg/cm (g) | TEST PRESSURE Kg/cm (g) | ||
| HYDROSATIC | HYDROSATIC | ||
| BODY | SEAT | BODY | SEAT |
| 31 | 22 | 78 | 58 |
| DIMENSIONS | ||||
| CLASS 300 | ||||
| SIZE (mm) | A (mm) | ØB (mm) | T (mm) | C (mm) |
| 1" | 203 | 124 | 17.5 | 75 |
| 1 1/2" | 228.5 | 156 | 20.6 | 97 |
| 2" | 267 | 165 | 22.3 | 120 |
| 3" | 318 | 210 | 28.4 | 157 |
| 4" | 356 | 254 | 31.7 | 170 |
| 6" | 444 | 318 | 36.5 | 195 |
| Notes : | ||
| *Flanges drilling as per ANSI B 16.5. *Dimenstion 'A' confirms to ANSI B 16.10 * Brass diaphragm nut is for below 1 1/2" class 150 & 300 |
